Winix 5520 review

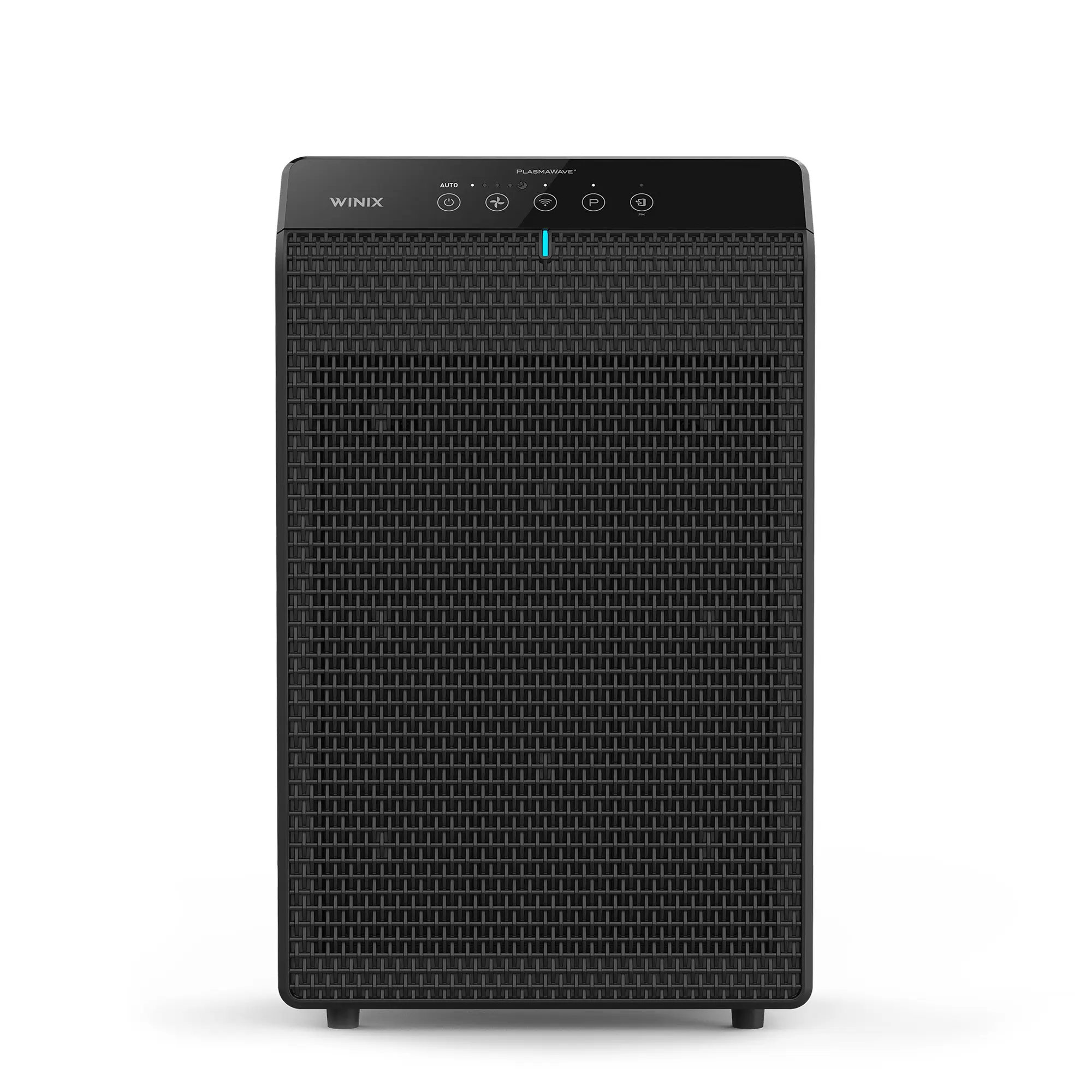

The Winix 5520 is a front-intake, Wi-Fi purifier for a medium room when you want washable pre-filtering, replaceable HEPA and carbon media, local buttons, and a color status light. Its exact U.S. page lists 392 square feet at 4.8 air changes per hour. That clears this guide’s 358-square-foot medium threshold, but not the 606-square-foot large-room requirement. The 1,882-square-foot figure is the one-hour example, not a substitute for its repeated-cleaning rating.

What changes when you choose a room size

Use the 392-square-foot area as a starting point for a closed room with an eight-foot ceiling, the basis Winix gives for its 4.8-ACH figure. Open doors, a tall ceiling, furniture, and the fan speed you can tolerate can change practical fit. The page’s 941-square-foot/30-minute and 1,882-square-foot/hour examples describe slower cleaning cycles, not the same 4.8-ACH room requirement. If a large room is essential, do not justify this model with the one-hour headline.

The same page lists dust, pollen, and smoke CADR figures of 252, 247, and 253 but does not state their units. Strict minimum-CFM matching treats those values as unknown rather than assuming CFM. The room rating remains the safer documented basis for the finder.

Odor sensing, not a numeric particle monitor

The manual is more specific than the page’s general sensor language: the Smart Sensor detects odorous gas, and Auto adjusts fan speed from that response. Auto can react to detected cooking odors, but the manual does not document response to smoke or particle concentration. The three-color indicator is a status cue, not a PM2.5 meter. If a numerical fine-dust reading is essential, choose a model whose exact manual documents that display, such as the distinct Winix T830; the 5520 should fail that requirement.

The 5520 does offer local controls as well as Winix Smart Wi-Fi/app control, and its product page lists Alexa support. You do not need to use an app for ordinary power, Auto, or fan operation: the manual says no software or firmware is required to operate the appliance. Its product table lists a timer in the Smart App, however, so don’t buy it for app-free scheduling. Winix does not publish timer increments on the exact page. The light sensor can lower the fan and dim lights in a dark room, returning the unit to Auto when light returns. That is an automatic Sleep behavior, not a set-and-forget room timer.

Three filter media, plus a switchable technology

Winix calls the system four-stage: a fine-mesh pre-filter, an AOC carbon module, a True HEPA filter, and PlasmaWave technology. The first three are the physical filter media; PlasmaWave is not a fourth replacement cartridge. The manufacturer describes the AOC stage as carbon pellets for general household odors and names Filter Q, SKU 1712-0123-00, as the replacement for 5510, 5520, and 5530. The cited page does not establish a separate PetGuard or SmokeGuard replacement profile for the 5520. Do not interpret general carbon language as proof that it solves a strong or constant odor source.

PlasmaWave has its own button and can be switched off. Winix publishes a chamber-test ozone result for the product, but that manufacturer-reported test is not an independent household exposure measurement. The manual does not classify the feature as an ionizer, so a buyer who needs a model confirmed to have no ionizing technology should not count the 5520 as a verified match merely because the feature is switchable.

Placement, sound, and upkeep

The rectangular body measures 13.59 by 8.27 by 22.17 inches. Those are body dimensions, not its full operating opening: the manual calls for 12–18 inches from walls and nearby electronics, a hard level surface, and unobstructed intake and outlet. Check the actual available floor space before measuring only the shell. Winix lists 65 watts and a 23.5 dB minimum, but no maximum noise level. The very quiet minimum does not tell you how loud it will be at higher speeds; the ceiling for an essential noise cap is unknown.

Setup is simple but not ready-to-run straight out of the box. Open the front, remove the pre-filter and take the main filter set out of its protective bag, then reinstall the HEPA at the back, carbon in the middle, and pre-filter at the front. The pre-filter is permanent; brush or vacuum it about every 14 days, rinsing only if especially dirty and letting it dry for at least 24 hours before reuse. The carbon and HEPA media cannot be washed. Winix estimates roughly 12 months for both and uses a filter-change indicator; reset it after replacing Filter Q. Actual life varies with the room.

Who should shortlist it?

Consider the 5520 when your room is within its medium-size 4.8-ACH basis, you want app access without depending on a phone for local operation, gas-responsive Auto, and a replaceable general-carbon/HEPA set. Choose another configuration if you need the larger-room tier, a numeric on-unit PM2.5 value, a documented maximum-noise ceiling, or published CFM CADR units. The T830 is a closer Winix comparison for a buyer who prioritizes particle-responsive Auto and numeric fine-dust feedback; the C535 is a smaller, non-app model with odor-responsive Auto, but its own room rating and filter system differ. None of these alternatives turns an air purifier into ventilation or a carbon-monoxide safeguard: Winix explicitly warns that this unit does not remove carbon monoxide. Follow the manual’s placement and maintenance instructions and handle the room’s source of smoke or persistent odor directly where possible.

Model identity: Winix 5520, U.S. product-page SKU 1022-0233-01. You can check the current product page and the shared 5510/5520 manual. The page and manual do not assign the paired 13.3/13.0-pound manual weight values to individual models; the 5520 weight is therefore left unconfirmed for strict matching.
